Key Points and Summary – The Soviet PT-76 was a unique amphibious light tank developed in the late 1940s to give the Red Army the ability to cross rivers without engineering support.
-Armed with a 76.2mm gun and featuring a fully amphibious design with twin water jets for propulsion, the PT-76 was ideal for reconnaissance and infantry support in the water-logged terrain of Eastern Europe.
-Its thin armor made it vulnerable, but its mobility proved highly effective in conflicts like the Vietnam War and the 1971 Indo-Pakistani War.
-Though largely obsolete, its design influenced a generation of Soviet armored vehicles.
Meet the PT-76
The PT-76 (floating tank as it is called in Russia) existed to fill a highly specific task within the Soviet armed forces. As the Cold War set in, Soviet military strategy shifted in favor of highly maneuverable, highly flexible armored operations.
This required an armored vehicle that could easily traverse rivers and other large bodies of water and thus the PT-76 was created. Despite quickly fading into obsolescence, the little amphibious tank filled its specific niche and paved the way for future amphibious vehicles.
A Tank Built to Swim
After the end of the Second World War, the USSR adopted a military doctrine of flexibility and maneuverability. During the war, the Red Army employed amphibious tanks like the T-37A and T-38, but these were lightly armed and armored, and their utility was limited.
The Soviet military recognized the need for a more capable amphibious vehicle that could support infantry, conduct reconnaissance, and operate in the vast and often waterlogged terrain of the USSR. The design work began in 1949 at the VNII-100 research institute, led by engineer Nikolai Shashmurin. The goal was to create a light tank that could swim without preparation, be easy to maintain, and provide adequate firepower for its intended role.

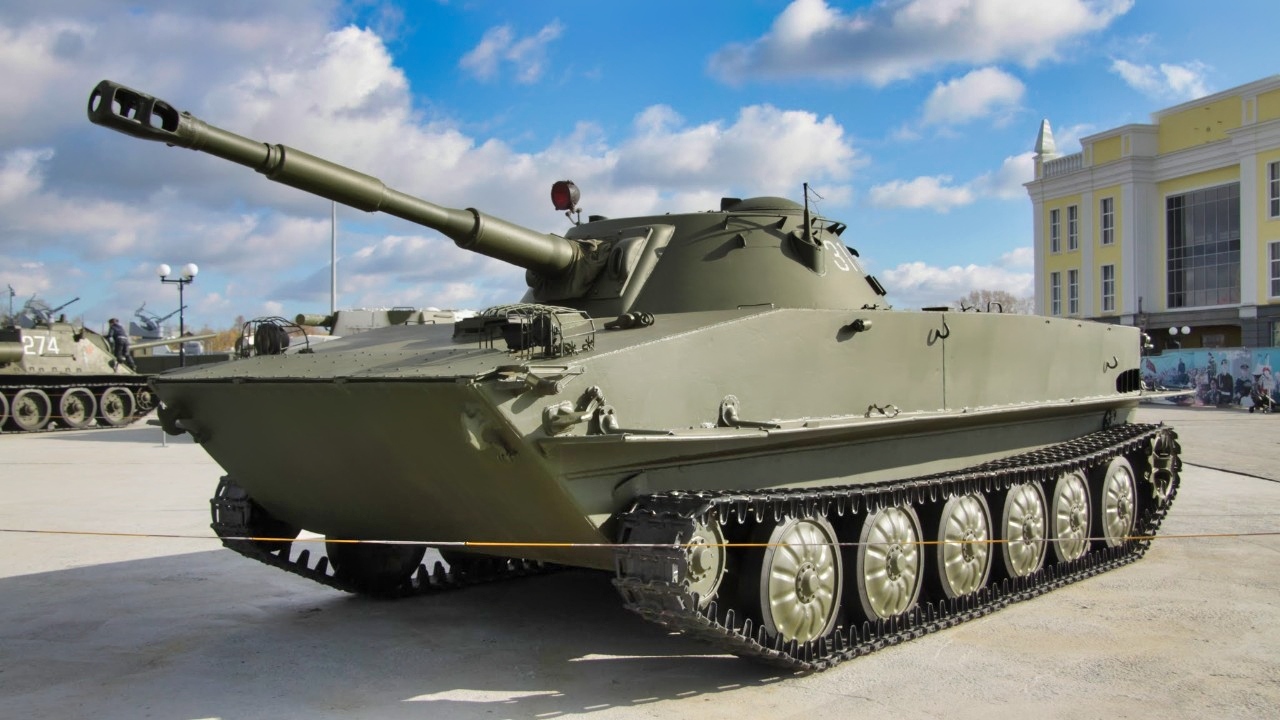

The resulting vehicle was the PT-76, a light tank with a fully welded steel hull and a low-profile turret. It was armed with a 76.2 mm D-56T rifled gun, capable of firing high-explosive, armor-piercing, and HEAT rounds. This gun was sufficient for engaging light armored vehicles and infantry positions, though it was not intended to take on heavily armored tanks. A 7.62 mm coaxial machine gun provided secondary firepower, and later variants included a 12.7 mm anti-aircraft machine gun mounted on the turret.
The tank’s armor was relatively thin, ranging from 6 to 14 millimeters, offering protection against small arms fire and shell fragments but little else.
The Soviet’s Little Amphibious Tank
One of the PT-76’s most distinctive features was its amphibious capability. Powered by a 240-horsepower V-6 diesel engine, the tank could reach speeds of around 44 kilometers per hour on land and approximately 10 kilometers per hour in water, thanks to its twin water jets.
It required no special preparation to enter water, making it ideal for river crossings and operations in marshy or coastal regions. The vehicle’s torsion bar suspension and wide tracks gave it good mobility across rough terrain, and its relatively light weight allowed it to be transported by air or rail with ease.
The PT-76 had a crew of three: a commander, a gunner, and a driver. The interior was cramped, as was typical for Soviet armored vehicles of the era, but it was functional. The tank’s simplicity and ease of maintenance made it popular among crews and contributed to its widespread adoption.
In Soviet service, the PT-76 was primarily used by reconnaissance units and naval infantry. Its ability to swim across rivers and lakes without engineering support made it invaluable in the vast and varied geography of the Soviet Union. It was not designed to engage enemy tanks head-on but to scout enemy positions, support infantry, and exploit gaps in enemy lines.
Operational use Outside the USSR
Beyond the Soviet Union, the PT-76 was exported to over 25 countries and saw extensive use in conflicts around the world.
In the Vietnam War, the North Vietnamese Army employed PT-76s in both reconnaissance and combat roles. One of the most notable engagements involving the PT-76 occurred during the Battle of Ben Het in 1969, where North Vietnamese PT-76s clashed with American M48 Patton tanks. Although the PT-76s were outgunned and suffered losses, their presence demonstrated the increasing sophistication of North Vietnamese armored forces.
India was another major user of the PT-76, deploying it during the 1965 and 1971 Indo-Pakistani Wars. In the 1971 conflict, Indian PT-76s played a crucial role in the eastern theater, now Bangladesh. The riverine terrain of East Pakistan was ideally suited to the PT-76’s amphibious capabilities, allowing Indian forces to outmaneuver Pakistani defenders and advance rapidly toward Dhaka. The tank’s performance in this campaign was widely praised and contributed to its reputation as a versatile and effective light tank.
Retirement and Legacy of the PT-76
Over the years, several variants of the PT-76 were developed. The PT-76B, introduced in 1959, featured a new gun stabilizer, improved fire control systems, and enhanced amphibious performance. Command variants were equipped with additional radios and antennas, and some were disguised with dummy guns to conceal their role.
Foreign versions also emerged, most notably the Chinese Type 63, which was based on the PT-76 but included several improvements. India and Indonesia also developed local upgrades to extend the tank’s service life.
Despite its many strengths, the PT-76 had notable weaknesses. Its light armor made it vulnerable to heavy machine guns, rocket-propelled grenades, and anti-tank missiles. Its 76mm gun, while adequate for its original role, quickly became obsolete as armor became more sophisticated.
The cramped interior limited crew efficiency, and the tank lacked modern fire control and night-fighting capabilities.
The PT-76 was nothing remarkable, but it served its specific niche. It influenced the design of several other vehicles, including the BTR-50 armored personnel carrier and the ZSU-23-4 “Shilka” self-propelled anti-aircraft gun, both of which used similar chassis designs.
The Chinese Type 63 continued the PT-76’s lineage with improvements tailored to local needs. It also influenced the development of the BMD series of light tanks for the Soviet’s and later Russian’s airborne forces.
Today, the 2S25M Sprut is Russia’s amphibious tank of choice. Though it is not widely produced, the Sprut fulfils the same role as the PT-76 being designed for amphibious operations.
About the Author: Isaac Seitz
Isaac Seitz, a Defense Columnist, graduated from Patrick Henry College’s Strategic Intelligence and National Security program. He has also studied Russian at Middlebury Language Schools and has worked as an intelligence Analyst in the private sector.
