Key Points and Summary – America built the X-15 to get flight data in the unknown between airplanes and spacecraft.
-The rocket-powered, Inconel-X research plane, air-dropped from a B-52 and driven by a throttleable XLR99, mixed fins and peroxide reaction jets to fly from dense air into near-space and back.
X-15 Long Shot and Engine Photo. Image Credit: National Security Journal.
-From 1959 to 1968, it flew 199 times, setting marks to Mach 6.70 and 354,200 feet while mapping heating, stability, control, and human factors.
-Accidents—including the 1967 loss of Maj. Michael Adams—reshaped displays and procedures.
-The X-15’s methods and data underwrite today’s hypersonic work, from materials to guidance, and define the flight-first culture modern programs still follow.
X-15: The Rocket Plane That Made Hypersonics Real
In the late 1950s the United States faced a cluster of urgent, unsolved problems. Long-range missiles were entering service, warheads were returning from space at blistering speeds, and crews in future spaceplanes or capsules would confront temperatures, forces, and control challenges no pilot had handled before. Wind tunnels and pencil-and-paper theory could illuminate parts of that world, but not all of it. Above about Mach 5 the physics of aerodynamic heating, boundary-layer transition, materials creep, shock interaction, and flight controls in thinning air became deeply uncertain.
The country needed truth data—flight data—through the harsh middle ground between airplanes and spacecraft. That is the gap the X-15 was created to cross. Rather than go straight from subsonic jets to capsules, the Air Force and NASA (then NACA transitioning to NASA) backed a reusable, piloted research vehicle to sample the hypersonic regime repeatedly, with an onboard pilot making decisions and narrating the behavior of the machine. If the United States wanted to understand reentry loads, thermal protection, high-altitude control, pilot workload, and recovery from exotic attitudes, a rocket plane you could fly again and again was the fastest way to learn.
North American X-15 Head On. Image Credit: National Security Journal.
And the crazy thing: I was just at the U.S. Air Force Museum in Dayton, Ohio, and took some fantastic pictures of this rocket plane for this article.
Amazing that it’s sitting in a museum and hit Mach 6.7. I literally could reach out and touch something that could hit hypersonic speeds decades ago.
Don’t worry, I followed all the museum rules. Ha, ha.
Design Philosophy: Fly The Question, Not The Fashion
The X-15 was compact, purposeful, and absolutely unforgiving in its honesty. Where fighters were shaped for combat and airliners for comfort, the X-15 was shaped for heat. Designers chose Inconel X, a nickel-chromium alloy, for an external “hot structure” that could run hot—well over 1,000°F on the skin—without melting or becoming too weak to carry loads. That choice avoided heavy, fragile insulation and let engineers study how a hot airframe expands, distorts, and still holds together.
The wings were short and stubby. At hypersonic speed, wings do not need to be broad; they need to be strong and predictable. The tail surfaces were large to give control at transonic and supersonic speeds, and the landing gear was a no-nonsense skid-and-nosewheel arrangement to save weight and complexity. The cockpit canopy was small, the windows thick and cooled; even glass becomes a design problem when the air outside is incandescent.

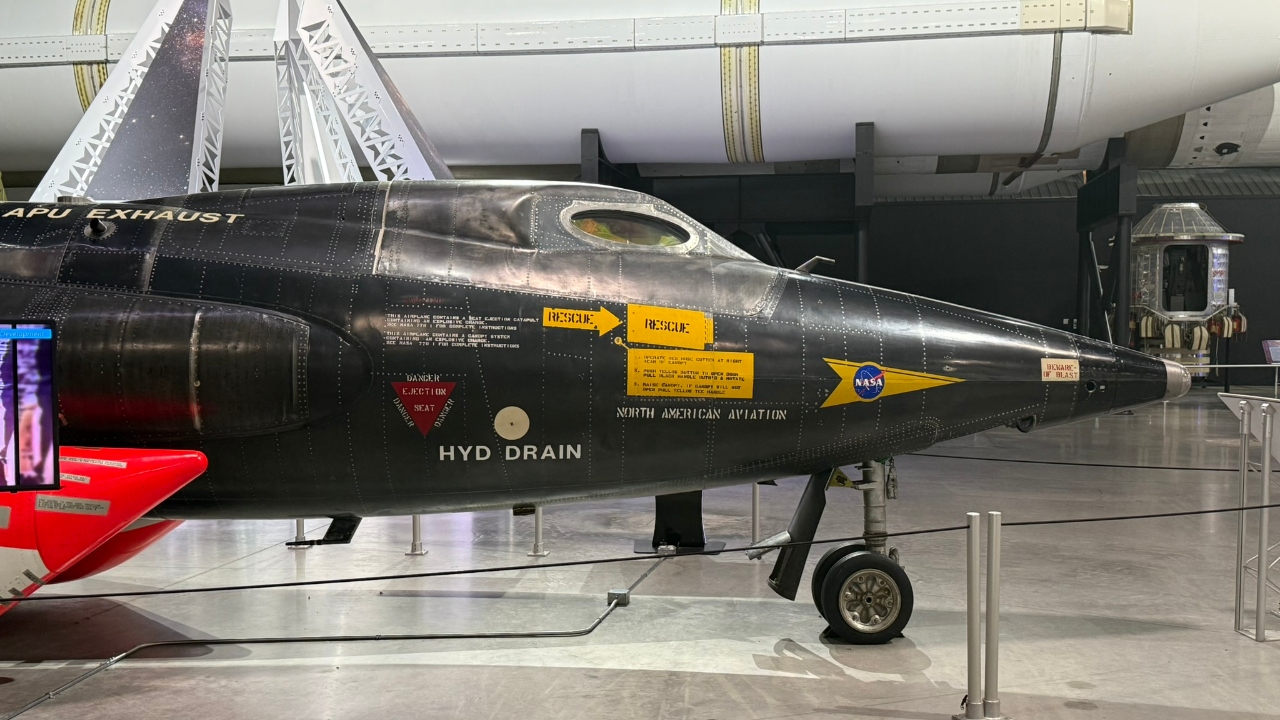

X-15 from U.S. Air Force Museum Original Photo. Image Credit: National Security Journal.
Two other design elements captured the program’s purpose:
Dual Control Systems. At high altitude the air is so thin that conventional aerodynamic surfaces lose authority. The X-15 therefore combined aerodynamic controls for dense air with small reaction-control thrusters that puffed jets of peroxide to pitch, roll, and yaw when the air stopped “biting.” That blend taught pilots and engineers how to transition between airplane logic and spacecraft logic in one flight.
Ball-Nose Air Data System. The needle-like “ball nose” carried a flush air-data system that measured pressures and angles accurately at extreme speeds and altitudes where pitot probes are unreliable. It became a reference instrument for calibrating other sensors and, indirectly, later spacecraft systems.
The Powerplant: Throttleable Rocket, Thirsty And Fierce
Early test flights used a temporary engine to get the program moving while the main engine matured. The definitive heart of the airplane was the XLR99, a throttleable, restartable, liquid-fuel rocket burning anhydrous ammonia with liquid oxygen. It could be throttled and even shut down and restarted in flight—unusual flexibility in that era—and it produced on the order of 57,000 pounds of thrust.
The engine made the airplane a sprinting instrument. A full burn lasted seconds to a couple of minutes, but those seconds were enough to accelerate through Mach 4, Mach 5, and beyond while climbing to the near-vacuum of the mesosphere. Every flight profile was a choreography: ignite, pitch to the target angle, hold within a tight corridor to build speed without overspeeding the structure, then shut down, gather data, and begin an unpowered, very long glide to landing.
X-15 USAF Museum Photo. Image Credit: National Security Journal.
The Carrier And The Launch: A Mothership For The Edge Of Space
To save fuel for the research regime and avoid the long climb from ground level, the program used a B-52 mothership to carry the X-15 under the wing to high altitude over the western ranges. Test conductors checked winds aloft and the status of the landing lakes, then released the vehicle. A perfect drop surely felt like a momentary fall followed by an immediate sense of command as the pilot lit the engine and the acceleration pressed him into the seat.
Two B-52s, known by their distinctive “Balls” nicknames for their tail numbers, served for years—an emblem of the X-15’s pragmatic culture: use what you have, spend the money where it buys knowledge, and let the sky do the rest.
Mission Goals: What The Program Aimed To Prove
The X-15 team wrote a straightforward research agenda that, with hindsight, reads like a checklist for the modern hypersonic age:
Aerothermal Reality. Measure temperatures and heat flux across a hot structure; watch seals, fasteners, and joints behave; confirm which shapes shed heat or collect it.
X-15A from U.S. Air Force Museum. Image Credit: National Security Journal.
Stability & Control Across Regimes. Quantify how the aircraft handled from dense air to space-like air and back, including the transition between reaction thrusters and fins.
Human Factors. Learn what pilots could see, feel, and manage in flights that went from runway speeds to several thousand miles per hour and back in minutes.
Navigation & Guidance. Validate inertial systems, “energy management” cues, and displays that would later inspire spacecraft cockpits.
Materials & Coatings. Test ablatives and paints, find which materials cracked, crazed, or peeled when cycled hot-cold every flight.
Reentry And Recovery. Study high-angle, high-speed descents and the flare to landing on skids; verify that a piloted vehicle could aim itself into a tight box from the edge of space.
These goals would not have been met by a single spectacular flight.
The X-15’s real magic was repetition: fly, learn, modify, fly again.
Operational History: Nearly 200 Lessons, One Flight At A Time
Between 1959 and 1968, the program logged 199 flights across three airframes and a team of top test pilots from the Air Force and NASA.
The names read like a chapter list in aerospace history: Scott Crossfield (who made the first powered flights), Joe Walker, Robert White, Neil Armstrong, Jack McKay, Forrest Petersen, Milt Thompson, Pete Knight, Bill Dana, and others. Each pilot contributed a unique temperament—some explorers of envelope edges, others methodical system evaluators—but all flew to a common script: expand, record, report.
A typical flight looked like this: The B-52 dropped the X-15 around 45,000 feet. The pilot stabilized, lit the engine, and rode the thrust to a planned energy state—sometimes chasing maximum altitude, sometimes maximum speed. After engine cutoff, the vehicle coasted, nose high, through air so thin that reaction jets kept it pointed correctly. Then it arced back down, meeting thickening air and rising heat loads as it descended. A long glide to Rogers Dry Lake ended with a flare, nose-wheel touchdown, and the skids skating the desert floor in twin trails of dust.
Speed And Altitude Milestones
First Into The Hypersonic Sixes. In 1961–62, Air Force pilot Robert White methodically became the first person to fly Mach 4, Mach 5, and Mach 6 in a piloted aircraft, each time gathering the data set engineers needed to calibrate their models.
Above The Kármán Line. On July 19, 1963, NASA’s Joe Walker took the X-15 to 354,200 feet (about 106 km), piercing the commonly cited boundary of space. Several flights exceeded 50 miles, earning USAF astronaut wings under American criteria.
Peak Speed: Mach 6.70. On October 3, 1967, Air Force pilot William “Pete” Knight—flying a modified X-15A-2 with external tanks and a heat-resistant ablative coating—set the still-astonishing Mach 6.70 record (about 4,520 mph). That flight punished the airframe; sections of the coating charred and peeled, and the aircraft required heavy maintenance afterward. But the data proved priceless for high-Mach heating and controllability.
Every achievement paid for itself in understanding. The instruments came home with hard numbers on skin friction, shock interactions, and control effectiveness that no wind tunnel of the day could supply.
Engineering Challenges: Heat, Structure, And The Unforgiving Middle
Three families of problems kept engineers honest.
1) Heating And Materials. At Mach 5 and above, aerodynamic heating drives everything. Joints expand at different rates; fasteners loosen; protective coatings bubble; windows develop micro-cracks; lubricants cook off. The Inconel X structure survived by running hot, and the X-15A-2’s ablative coating (a sacrificial layer) took the brunt on the highest-speed flights. Engineers learned how heat maps migrate across the vehicle and where local hot spots tear up the best predictions.
2) Controls And Coupling. As air thins, small control inputs can produce surprising axis coupling: a roll command triggers yaw; a yaw command triggers a pitch bobble. The program experimented with adaptive control systems—the MH-96 on one airframe blended pilot inputs with automatic stability augmentation—to keep the machine obedient through regime transitions. Pilots trained to sense when reaction jets were in charge and when the fins had enough “bite” again.
3) Systems Integration. The inertial navigation needed steady updates; the ball nose needed careful calibration; propellant plumbing had to behave whether the vehicle was pulling Gs or coasting weightless. Even the chase planes and ground radar had to be where they were supposed to be, when they were supposed to be there, or the recovery window closed.
What makes the X-15 remarkable is not that it had problems, but that it solved them in flight and fed the solutions forward to later programs.
Accidents, Close Calls, And What Changed After
High payoff carries high risk. The program’s most painful day came on November 15, 1967, when Major Michael Adams—flying the third X-15 on a maximum-altitude mission—encountered instrument anomalies and control-system issues that left the vehicle in a high-altitude, high-angle attitude with growing oscillations. As it descended into denser air, the airplane departed controlled flight, experienced extreme aerodynamic loads, and broke up. Adams was killed.
The investigation drove changes in pilot displays, inertial system monitoring, and procedures for recognizing and correcting divergent attitudes before reentry loads grow. It also underlined the human-factors truth at the heart of flight test: even the finest pilot is only as good as the information he has in the seconds that matter.
There were other scares: landing gear collapses on rough lakebeds, engine hiccups, and overshoots that carried an airplane past the intended recovery area, forcing a long, tense glide to an alternate lake. Each incident became a lesson plan. The reason the X-15’s safety record, grim as it is, is not worse comes down to culture: precise planning, disciplined go/no-go calls, and a team that treated risk as a variable to be measured, not a badge to be collected.
Records Broken—And What Those Records Really Mean
Numbers alone—Mach 6.70, 354,200 feet, 199 flights—do not tell the whole story. The X-15’s particular genius was to make the path to those numbers visible. Test cards called for runs at precise angles of attack, for boundary-layer trips to force transition at known points, for the deliberate excitation of flutter modes to map how the vehicle vibrated. The result is a data set that still anchors hypersonic analysis today.
Those records also reframed human spaceflight. Several X-15 pilots earned astronaut wings via altitude; their debriefs helped spacecraft designers understand spatial disorientation and control feel in flight regimes that capsules only passively crossed. If you want to know what it is like to fly near space rather than ride through it, the X-15 cockpit is where you ask.
Why The Program Ended
The X-15 was never meant to be a forever machine.
By 1968, its essential objectives had been met: engineers had hard data on heat, control, structures, and human factors up to the edge of space; the Saturn-Apollo enterprise was at full stride; and budgets were pivoting toward operational spaceflight and new aeronautics lines. The airframes themselves were showing age and cumulative thermal stress. Programs ebb when their marginal learning drops below their marginal cost, and by the late 1960s that was the calculus.
Crucially, ending the flights did not end the influence. The test reports, materials coupons, and control-law insights moved directly into the next generation of vehicles.
The Legacy: A Straight Line To Today’s Hypersonics
Walk forward from the X-15 and you can connect its fingerprints to almost every serious American effort in extreme-speed flight.
Thermal Protection And Hot Structures. The idea that you can let a structure run hot and live—managing expansion rather than preventing it—feeds into modern hot-structure thinking and into the choice between ablatives, ceramics, and metallic TPS for reentry and hypersonic cruise.
Reaction Controls And Blended Laws. The seamless handoff between thrusters and fins forecast how spacecraft and lifting bodies manage attitude. It also underpins the logic in later demonstrators that blend effectors (flaps, jets, even thrust vectoring) under one brain.
Guidance, Displays, Human Factors. Energy management cues, inertial nav sanity checks, and the need for intuitive displays at high workload all fed forward to space capsules, lifting bodies, and eventually the space shuttle and modern crew vehicles.
Aero/Propulsion Integration Mindset. Even without an air-breathing engine, the X-15 taught a habit of treating vehicle and propulsion as one system—central to today’s scramjet and combined-cycle projects, where inlets, isolators, combustors, and structures are inseparable.
Flight-First Culture. Perhaps the most important legacy is methodological: fly early, fly often, and fly relevant. The X-15’s brief, high-fidelity encounters with hypersonic reality are exactly the kind of moments current programs still chase to validate codes and calibrate facilities.
When later projects like X-43A and X-51A lit their air-breathing engines at Mach numbers the X-15 reached with rockets, they were standing on a foundation the X-15 poured: how to instrument, guide, and survive in the thin, hot air.
What The X-15 Says About Hypersonics Now
Today’s hypersonic headlines orbit missiles and high-speed reconnaissance, but the engineering questions rhyme with those the X-15 asked: Where does the heat really go? What does control feel like when density changes by a factor of a hundred in minutes? How do you test, fail, fix, and try again without going broke?
Two lessons endure. First, discipline beats drama. The fastest way to the right answer is a carefully instrumented flight that lasts seconds, not a single heroic stunt. Second, pilots still matter, even when vehicles are unmanned. The X-15’s greatest product was understanding—and much of that came from human observation paired with clean data. Autonomous hypersonic vehicles still benefit from that kind of insight, encoded now in software and test plans rather than stick and rudder.
A Human Story, Not Just A Technical One
It is easy to see the X-15 as a vehicle of metal and math. It was also people: chase pilots calling out shock cones; lakebed crews hosing dust from scorched skins; flight surgeons tracking G-loads and blackouts; engineers poring over strip-charts late into the desert night; and pilots who strapped in knowing that the line between unknown and unknowable was thin. The program’s tone—pragmatic, terse, utterly focused—became the house style of American flight test for decades.
Final Appraisal: The X-15 Rocket Plane That Made “Hypersonic” A Place, Not A Word
The X-15 did not promise an airliner to Tokyo in an hour, nor a fleet of spaceplanes. It promised truth about flight where heat and speed turn equations cruel, and it delivered that truth 199 times. In doing so, it proved that the shortest path from theory to confidence runs through measured, repeatable flight.
When we talk about Mach 6, Mach 7, Mach 8 today—whether for strike systems, high-altitude ISR, or access-to-space concepts—we are speaking a language the X-15 taught us to pronounce.
It remains the most successful hypersonic research airplane ever built, not because it flew the fastest once, but because it made hypersonics a laboratory you could visit—again and again—until the unknowns became tools.
